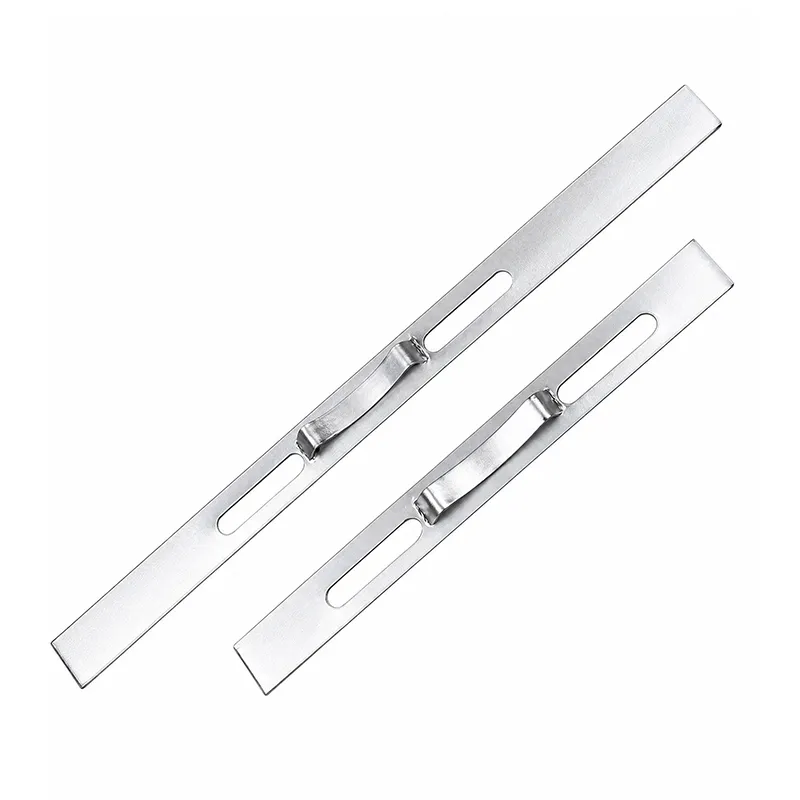

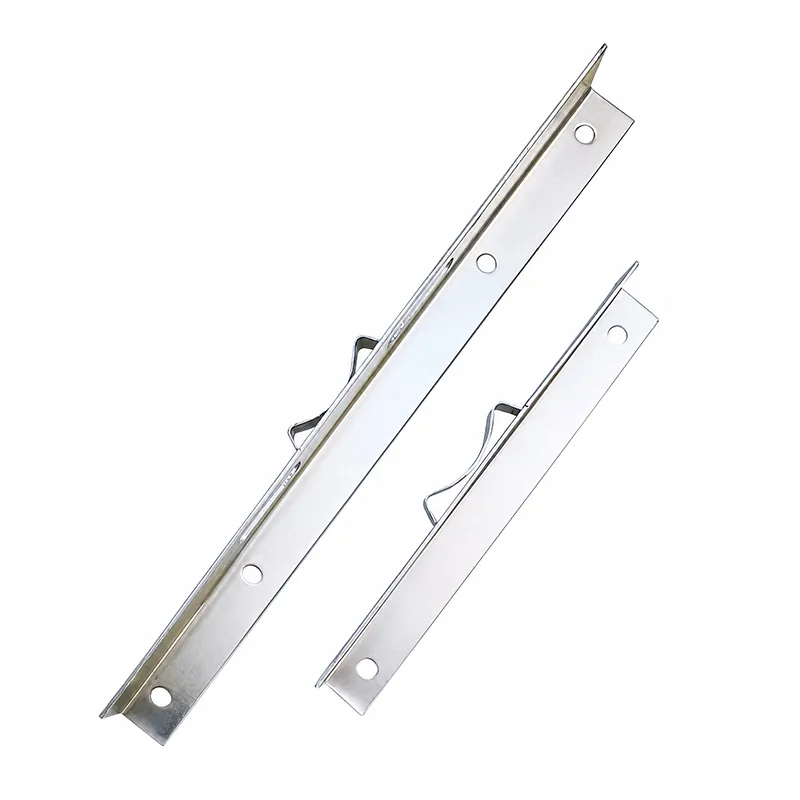

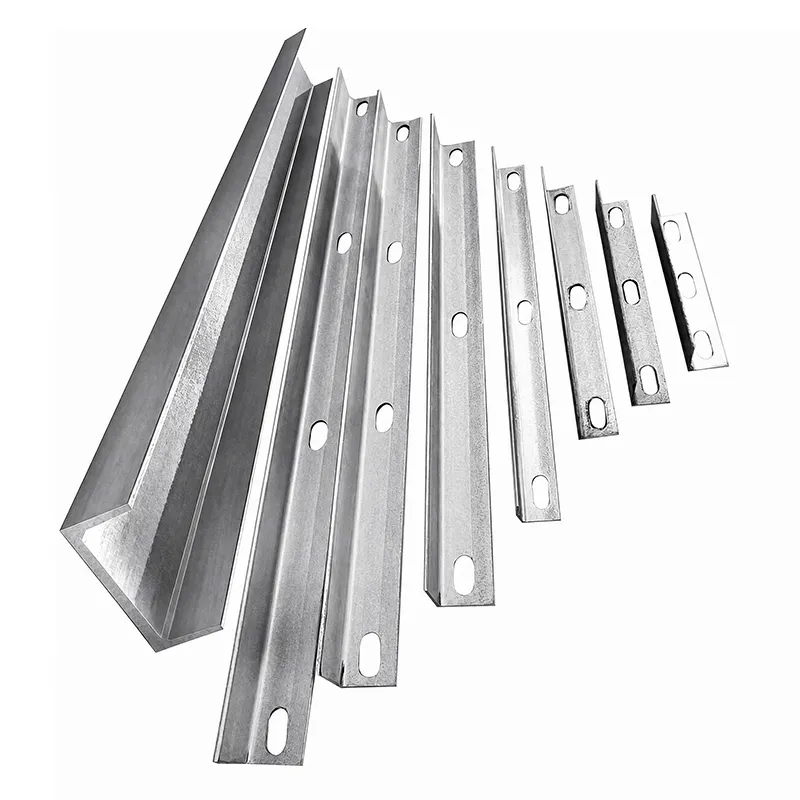

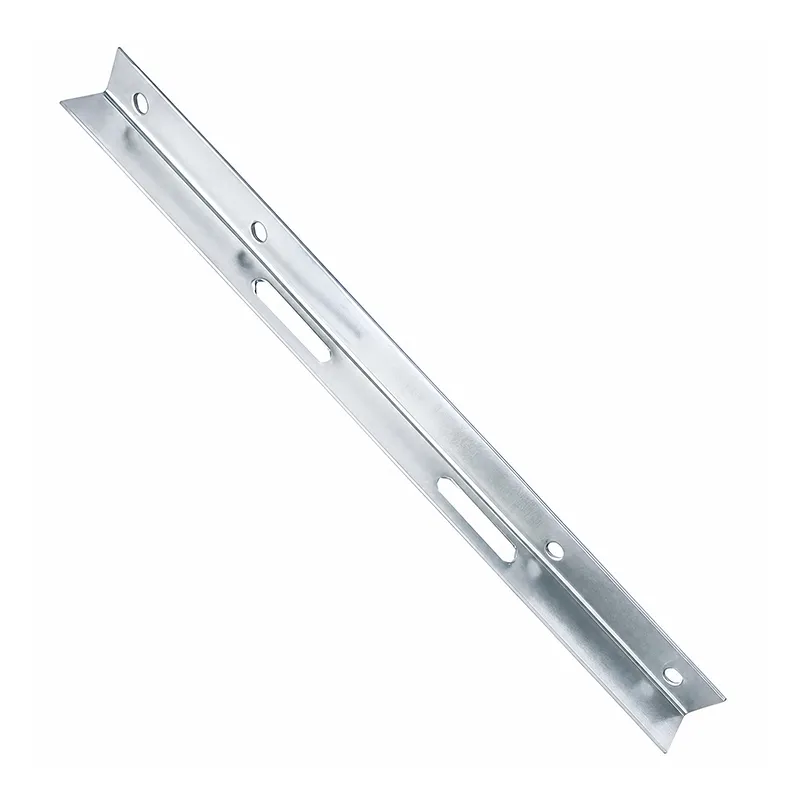

Cross Arm & Channel

Cross Arm & Channel Series provide hot-dip galvanized structural support and flexible mounting for distribution poles and substation frameworks.

Specifications

Model: Cross Arm & Channel Series
Material: Hot-dip galvanized structural angle steel, welded steel clamps and brackets

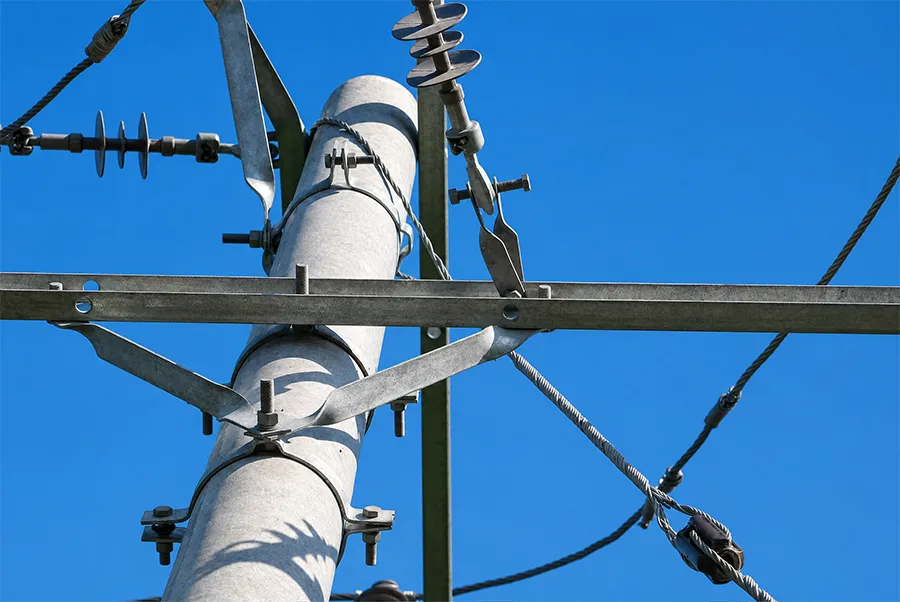

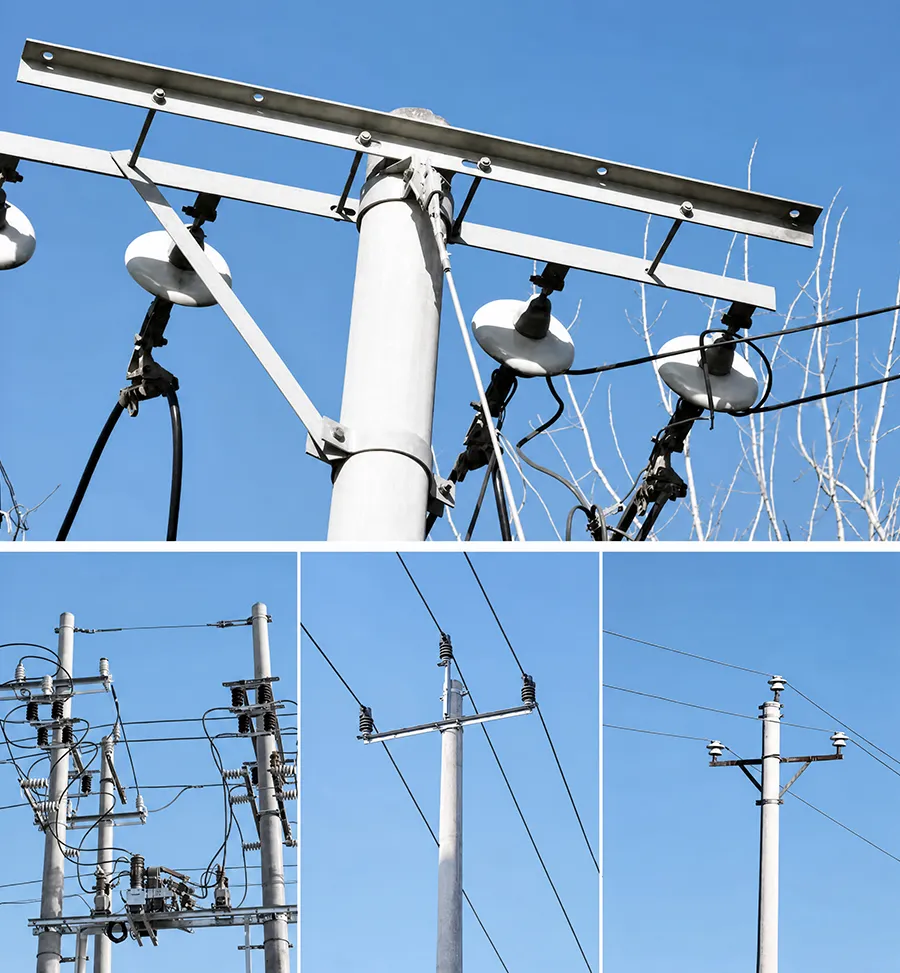

Application: Pole cross arm support, conductor spacing, transformer bracket mounting
Feature: Hot-dip galvanized, pre-punched slots and holes, welded reinforcement brackets, multiple lengths and profiles
Catalog Category: Distribution Line Iron Products

Quote Now

Product Description

WANGYUAN Cross Arm & Channel Series are designed for structural support and conductor spacing in distribution line poles and substation equipment frameworks. Made of hot-dip galvanized structural angle steel with welded clamps, the pre-punched slot-and-hole pattern enables flexible mounting of insulators and auxiliary equipment. Available in multiple section profiles, lengths and load ratings. All products comply with relevant international standards.

Specification

Type	Width(mm)	High(mm)	Thickness(mm)	Length(mm)
Angle	100	63	8	3000
	90	90	8	3000
	125	80	8	3000
	100	63	8	2500
	100	63	6	2500
	160	100	12	6000
	160	100	12	9000
	125	75	8	2240
	100	50	5	600
	50	50	5	1200
	75	75	8	1200
	75	50	8	750

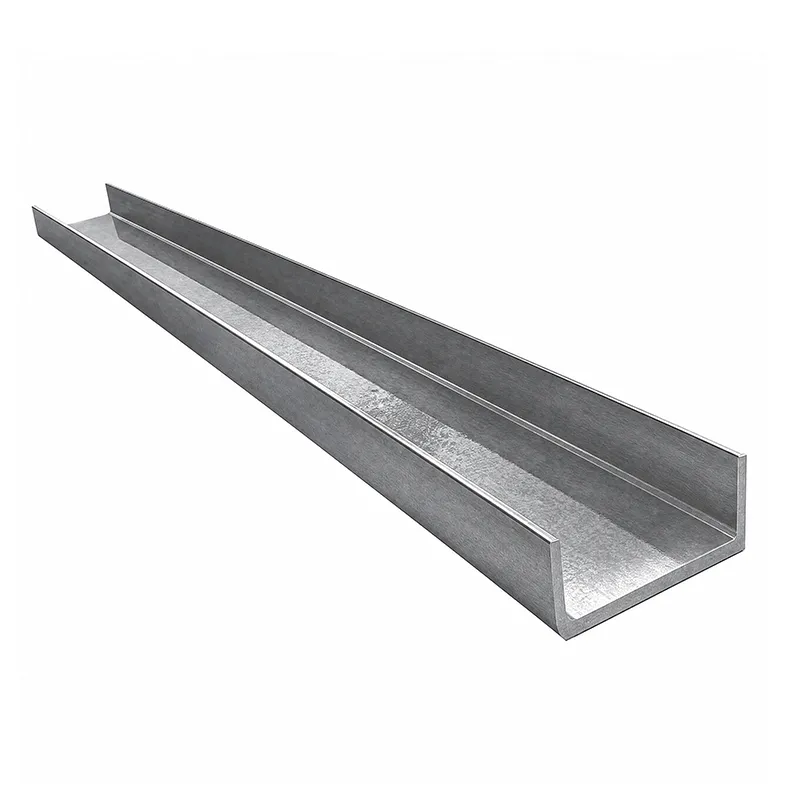

U Channel	160	100	8.5	3000
	160	65	8.5	3000
	160	100	8.5	550
	100	50	5	2240

Advantages

Structural Rigidity

Fabricated from structural-grade angle steel with welded reinforcement brackets, the cross arms deliver exceptional bending and torsional rigidity to support heavy conductor bundles and insulators without sagging.

Mechanical Strength

Premium hot-rolled angle steel combined with full-penetration welded clamps provides superior tensile and shear strength at all connection points. Each weld is inspected for integrity under mechanical stresses from conductor tension and ice loading.

Corrosion Resistance

Complete hot-dip galvanizing encapsulates all surfaces including cut edges and weld zones with a uniform zinc layer, delivering comprehensive protection against rust and oxidation from UV exposure, acid rain and coastal salt spray.

Flexible Installation

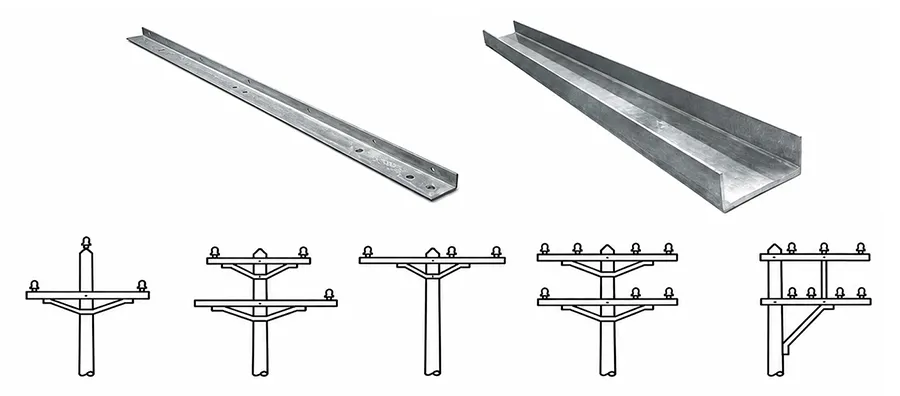

Pre-punched slots and standardized bolt hole patterns allow rapid on-site positioning of mounting hardware without drilling or welding. The modular design supports single-arm, double-arm and multi-tier configurations.
