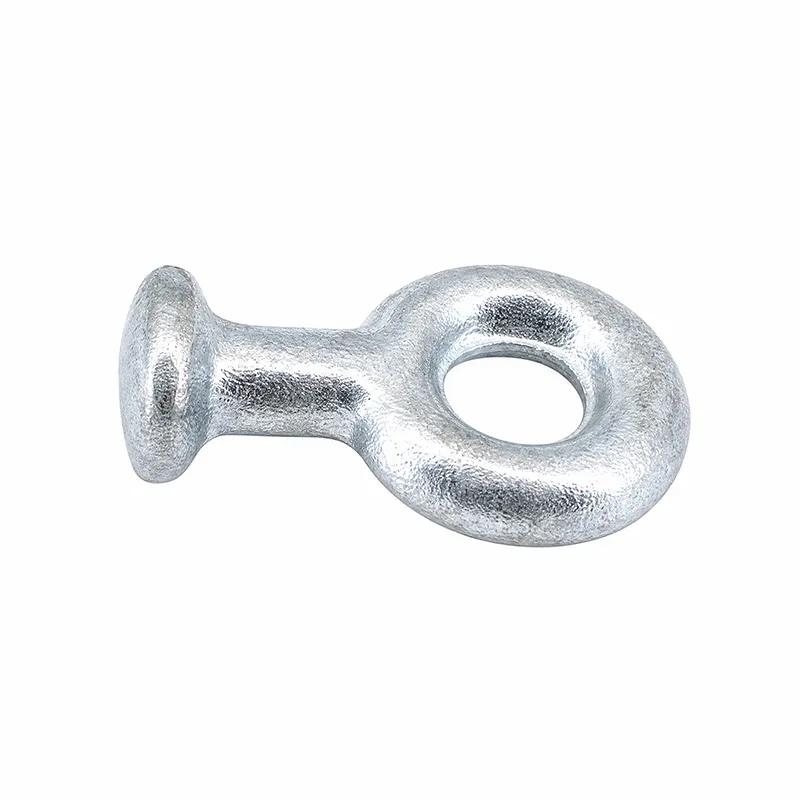

QP and QH Ball Eye

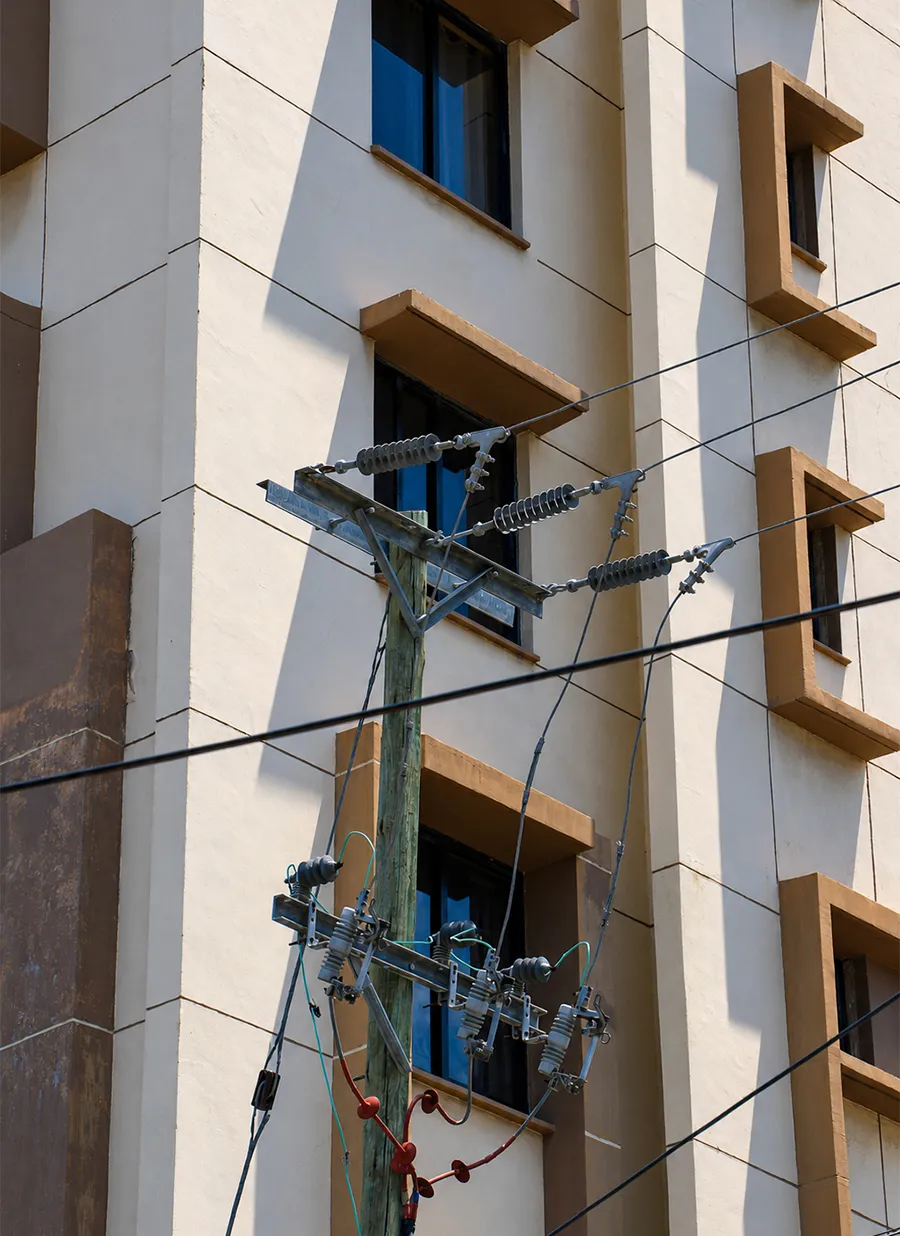

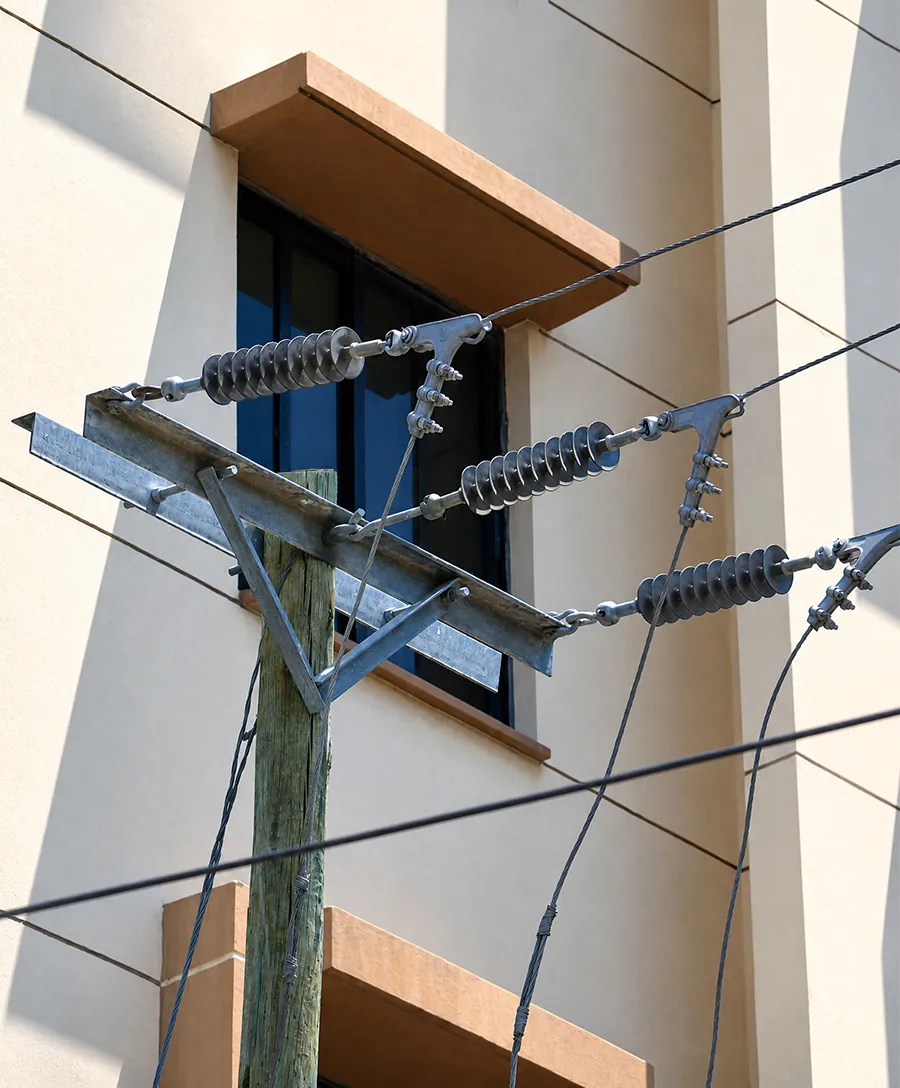

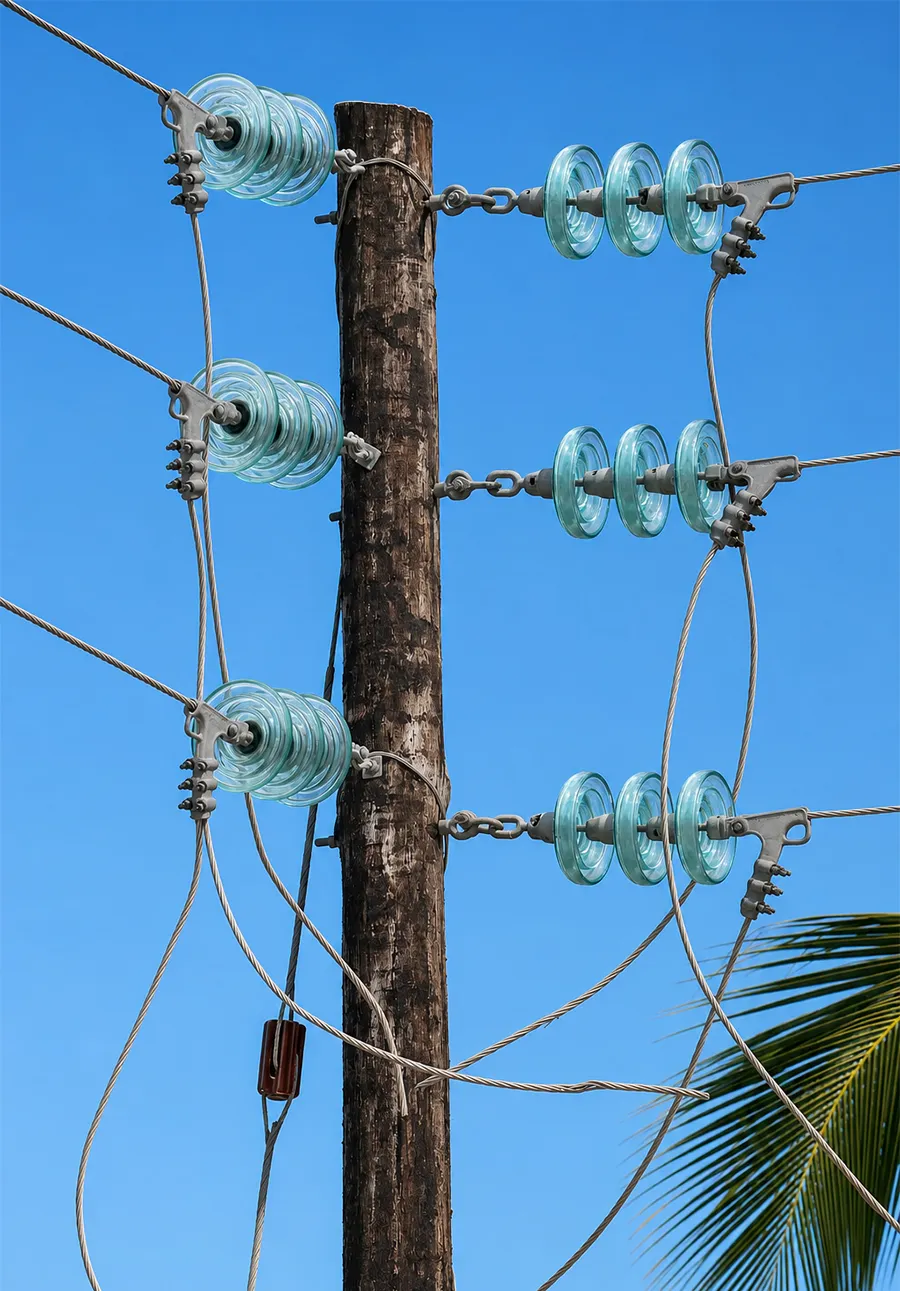

QP and QH Ball Eyes provide hot-dip galvanized, flexible articulated connections for insulator strings and suspension assemblies in distribution and transmission lines.

Specifications

Model: QP and QH Ball Eye Series
Material: Hot-dip galvanized forged steel, high-strength cast alloy steel
Application: Insulator string connection, suspension assembly linkage, tension clamp articulation
Feature: Hot-dip galvanized, ball-and-socket articulation, flanged anti-slip base, split-pin locking, multiple load ratings
Catalog Category: Distribution Line Iron Products

Quote Now

Product Description

WANGYUAN QP and QH Ball Eye Series are designed for flexible articulated connections in distribution and transmission line insulator strings and suspension assemblies. Made of hot-dip galvanized forged and cast alloy steel, the spherical ball-and-socket interface permits angular movement to accommodate conductor swing and wind deflection. Available in QP and QH configurations with multiple load ratings. All products comply with relevant international standards.

Specification

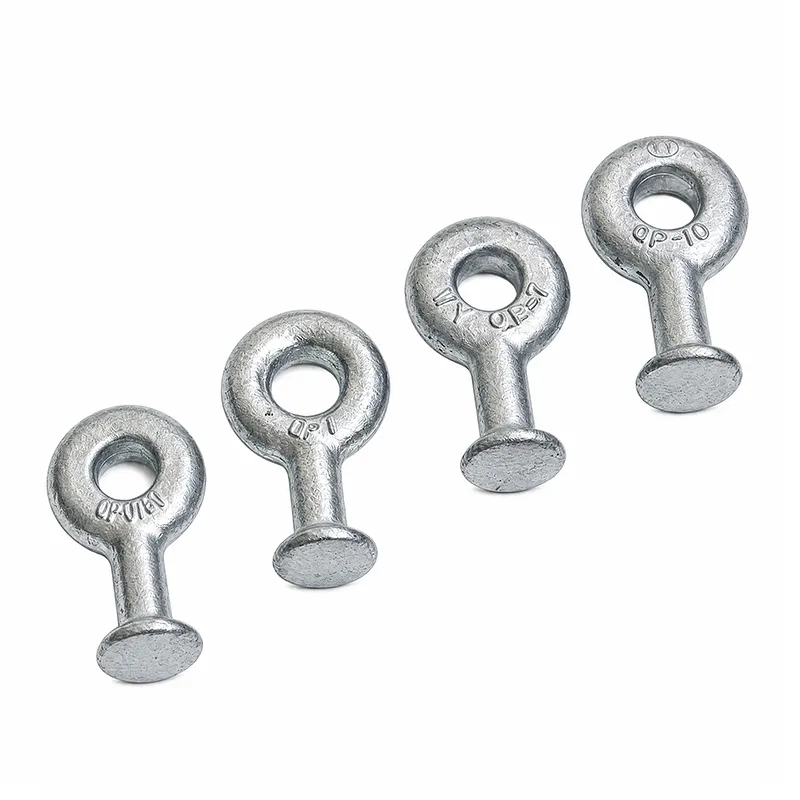

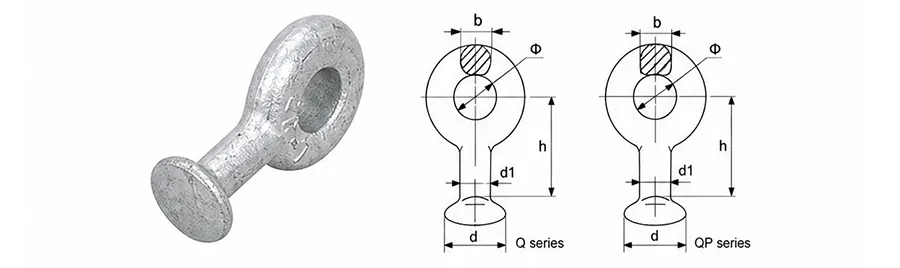

O/OP Ball Eye

Material: Hot Dipped galvanized Steel

Type	Dimension(mm)					Link Marker	Failure Load(KN)
Type	d	Φ	b	d1	h	Link Marker	Failure Load(KN)
Q-7	17	22	16	33.3	50	16	70
QP-7	17	22	16	33.3	50	16	70
QP-10	17	22	16	33.3	50	16	100
QP-12	17	24	16	33.3	50	16	120
QP-16	21	26	20	41	60	20	160

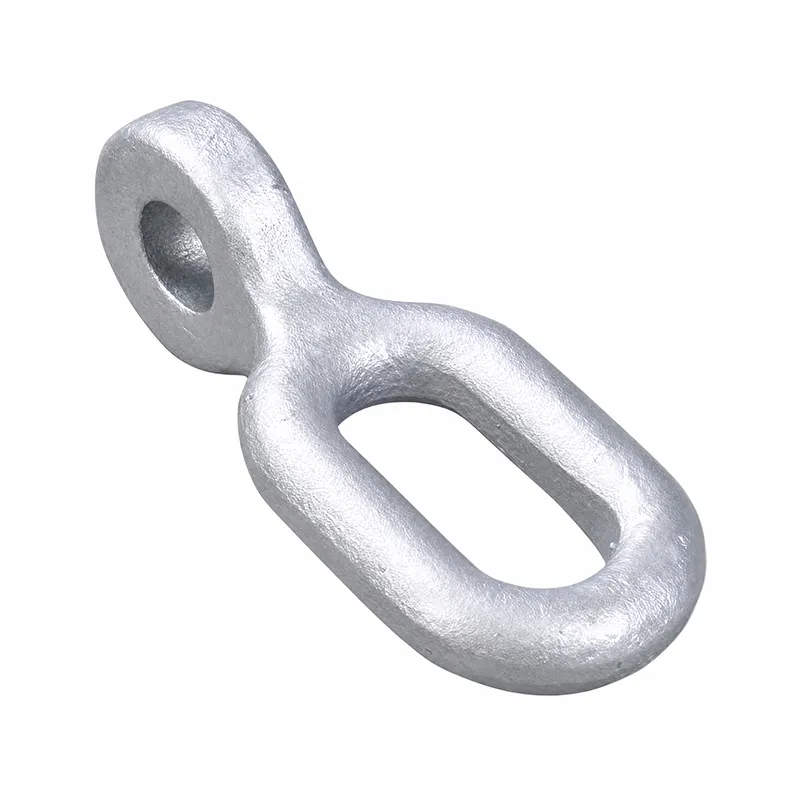

QH Ball Eye

Material: Hot Dipped galvanized Steel

Type	Dimension(mm)					Link Marker	Failure Load(KN)
Type	b	d	d1	H	H1	Link Marker	Failure Load(KN)
QH-7	16	17	33.3	100	57	16	70
QH-10	18	17	33.3	110	57	16	100
QH-12	19	17	33.3	120	65	16	120
QH-16	18	21	41	127	45	20	160

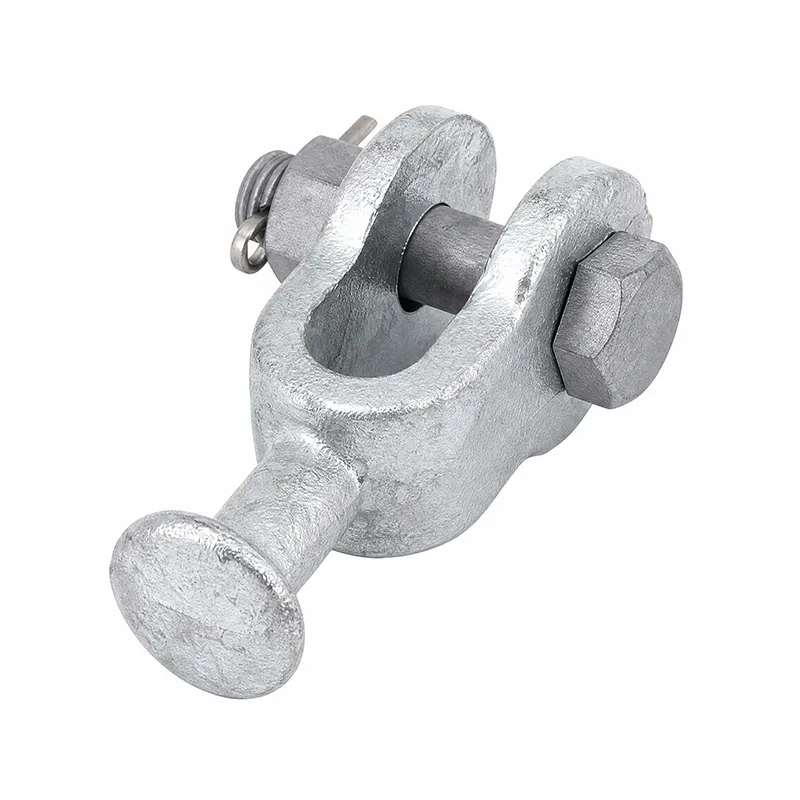

Q-U Ball Eye

Material: Hot dip galvanized steel R type pin made of stainless steel

Type	Dimension(mm)					Failure Load(KN)
Type	H	d	d1	M	C	Failure Load(KN)
Q-7U	80	17	33.3	16	18	70
Q-10U	80	17	33.3	18	20	100
Q-12U	95	17	33.3	22	22	120
Q-16U	80	21	41	24	22	160

Advantages

Flexible Articulation

The precision-machined spherical ball interface provides smooth multi-axis angular articulation, allowing insulator strings and conductor assemblies to swing freely under wind loads without imposing bending moments on adjacent hardware.

High-Strength Steel

Ball eyes are manufactured through hot forging or precision casting of high-grade alloy steels, achieving dense grain structure and superior tensile strength. Flanged base designs prevent pull-through and provide positive seating within the socket.

Corrosion Resistance

Complete hot-dip galvanizing provides uniform corrosion protection across all surfaces including internal socket cavities. The smooth galvanized surface contributes to corona-free performance at medium and high voltages.

Standard Compatibility

Compliant with international dimensional standards for ball-and-socket couplings, the QP and QH series ensure full interchangeability with industry-standard socket clevises, yoke plates and suspension clamps.
