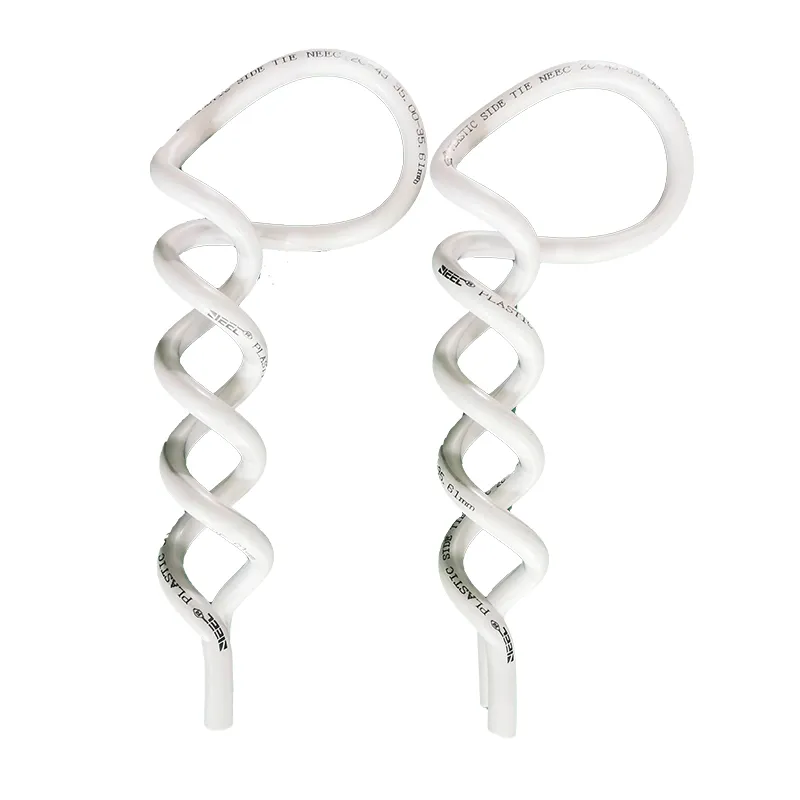

Top ceramic pre-twisted wire

Top ceramic pre-twisted wire uses a helical self-gripping design with UV-resistant polymer to evenly distribute clamping force on ceramic insulators, meeting IEC 61284 standards for harsh outdoor environments.

Specifications

Model: Top ceramic pre-twisted wire
Material: UV-resistant polymer / aluminum alloy strands, hot-dip galvanized steel connecting fittings

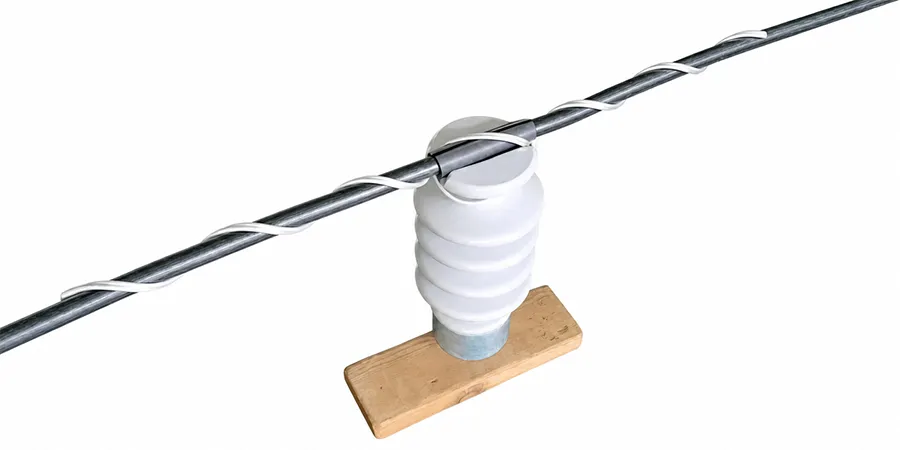

Application: Fixing the top insulation of ceramic insulators
Feature: Helical self-gripping structure, uniform stress distribution, tool-free installation, cable-friendly clamping,Corrosion resistant plastic layer
Catalog Category: Fiber Optic Accessories

Quote Now

Product Description

WANGYUAN Top ceramic pre-twisted wire are specifically engineered for overhead transmission and distribution power systems. The strand bodies are manufactured from high-strength hot-dip galvanized steel wire or electrical aluminum alloy wire with UV-resistant polymer through precision twisting process, with uniform pitch, smooth surface and excellent tensile strength, high temperature resistance and anti-fatigue performance. Featuring an innovative helical self-gripping structure, these products evenly disperse the clamping force along the ceramic insulator, effectively avoiding stress concentration and strand damage caused by traditional point-clamping fittings. All products are manufactured in strict accordance with IEC 61284 and relevant international power standards, maintaining stable performance in harsh outdoor environments such as high temperature, high humidity and coastal salt spray.

Specification

Type	Cable Size	Length	A1 stranded wire	10kV Insulation	wire DIA	Radical Number
FLT-0650	5.1-6.5	700	16,25		2.59	2
FLT-0900	7.5-9.0	750	35,50		2.59	2
FLT-1100	9.5-11.0	800	70		2.59	2
FLT-1260	11.6-12.6	850	95	10,16	3.25	2
FLT-1500	14.0-15.0	900	120	25,35	3.25	2
FLT-1610	15.7-16.1	950	150	50	3.25	2
FLT-1880	17.5-18.8	1000	185,210	70	3.25	2
FLT-2100	19.6-21.0	1050	240	95,120	3.25	2
FLT-2420	22.4-24.2	1100	300	150,185	3.25	2
FLT-2700	25.9-27.0	1200	400	240	3.25	2
FLT-3000	28.5-30.0	1300	500	300	3.25	2

Advantages

Uniform & Reliable Grip Performance

Helical wrapping structure distributes clamping force evenly over long contact length, no damage to ceramic insulator, stable tensile load capacity, no slipping under long-term operation.

Excellent Anti-fatigue & Protection Performance

High-strength twisted structure with wear-resistant polymer surface effectively absorbs line vibration, reduces breeze vibration damage, protects insulator surface from wear, significantly extends cable service life.

Superior Weather & Corrosion Resistance

UV-resistant polymer-reinforced hot-dip galvanized steel or aluminum alloy material, stronger rust and corrosion resistance with high temperature endurance, suitable for long-term outdoor operation in coastal, industrial and plateau environments.

Efficient & Convenient Installation

Lightweight preformed structure, no special tools required, manual wrapping installation, fast on-site assembly, effectively reduces construction period and labor cost.
