JY/JT Series Joints and Connectors feature seamless high-purity aluminum construction for stable crimping, low resistance, and reliable tensile strength, meeting IEC 61238 standards.

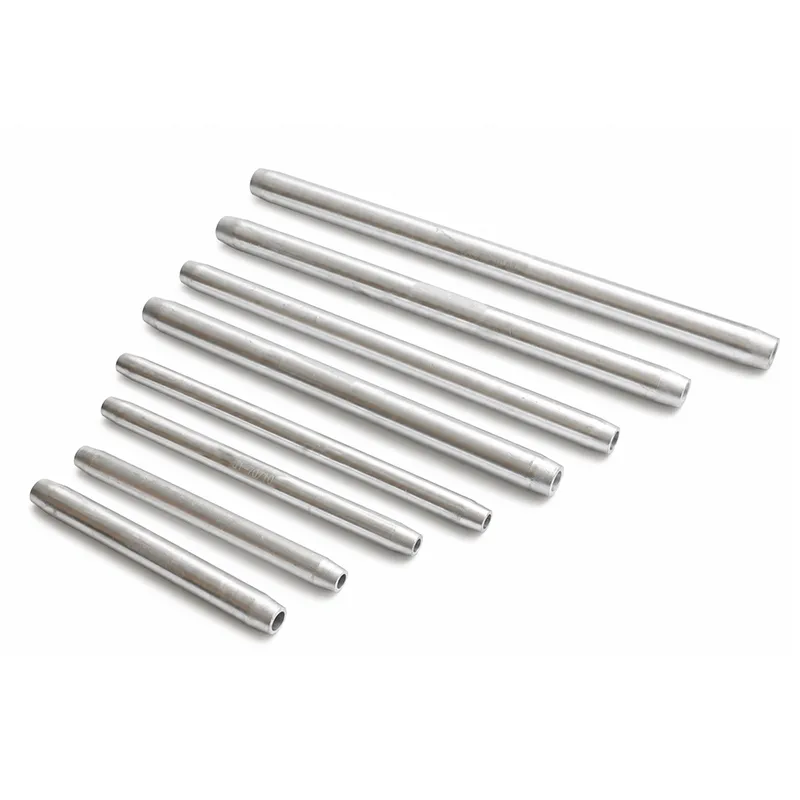

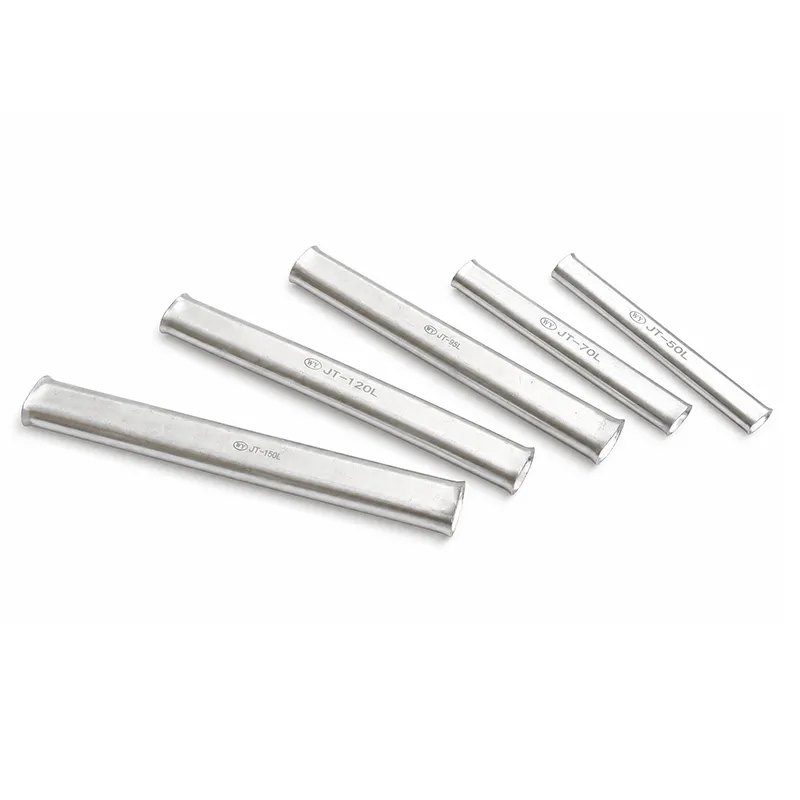

WANGYUAN JY/JT Series Joint and Connector are engineered for straight conductor splicing in overhead transmission and distribution systems. Fabricated from high-purity electrical aluminum with precision seamless forming, they deliver stable crimping quality, low contact resistance and reliable tensile performance. Covering a full range of conductor cross-sections, all products comply with IEC 61238 and relevant international power standards, ensuring durable performance in outdoor environments.
Material:Aluminium
| Type | Cable range Applicable | Dimension(mm) | Rated Failure Load(KN) | |||||
|---|---|---|---|---|---|---|---|---|
| L | D | d | L1 | D1 | d1 | |||
| JY-70/10 | JKLGYJ-70/10 | 360 | 25 | 13 | 110 | 12 | 4.5 | 21 |
| JY-95/15 | JKLGYJ-95/15 | 430 | 26 | 15 | 130 | 14 | 5.7 | 31.5 |
| JY-120/20 | JKLGYJ-120/20 | 430 | 30 | 16 | 130 | 14 | 6.2 | 36.9 |
| JY-150/25 | JKLGYJ-150/25 | 500 | 30 | 18.5 | 150 | 14 | 7 | 48.7 |
| JY-185/25 | JKLGYJ-185/25 | 520 | 32 | 20.5 | 150 | 14 | 7 | 53.5 |
| JY-240/30 | JKLGYJ-240/30 | 570 | 36 | 23 | 170 | 16 | 7.9 | 68 |
Seamless tube structure with uniform crimping deformation, maintains low and stable contact resistance under long-term current load; high tensile strength withstands line tension without loosening or fracture.
High-purity electrical aluminum material with fine surface treatment, excellent oxidation and corrosion resistance, adapts to outdoor high temperature, high humidity and coastal salt spray environments.
Full model lineup covers various conductor cross-sections, compatible with bare aluminum conductors and ACSR, meeting diverse construction requirements of power lines.
Standard dimensional design matches common hydraulic crimping tools, simple on-site operation with consistent crimping effect, effectively improves construction efficiency and reduces labor cost.
